186122 - High-Performance Shank-Type Cutters DP - Z=3+3

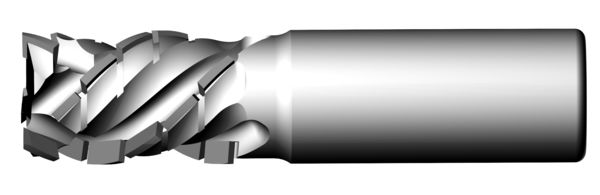

Product

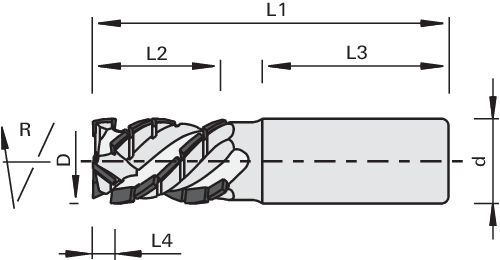

Drawing
-
-
- Polycrystalline diamond [DP]
- MEC
Technical data
Description
Machine / Application
- CNC routers
- for sizing and dividing cuts in raw, melamine-, paper-, HPL-laminated, foiled and veneered panels
- high-performance tool for pre- and finish-milling
Design
- with DP plunge tip for diagonal plunge-cutting
- with shear angle
- resharpening area 3.0 mm
- n max = 24,000 min-1
Advantages
- optimum cutting quality thanks to shear angle, alternating top and bottom
- smooth running thanks to spiral cut configuration
Notes
- feed rates up to 30 m/min
- Clamping elements: ps-System, TRIBOS , draw-in collet chuck
- with thread for length adjusting screw
| Feature | Value | |
|---|---|---|
| Ø D = Cutting circle diameter | 25 [mm] | |
| L4 = Cuttind width 1 | 7 [mm] | |
| L2 = Cutting width | 38 [mm] | |
| Ø d = Shank diameter | 25 [mm] | |
| L3 = Shank length | 55 [mm] | |
| L1 = Total length | 105 [mm] | |
| Z = No. of teeth | 3+3 | |
| nmax = maximum RPM | 24,000 [min-1] | |
| Resharpening area = Resharpening area | 3 [mm] | |
| L/R = cutting direction | R | |
| L = Delivery Status | ||
|
Dimensions entered are not listed?
available from stock |
||
