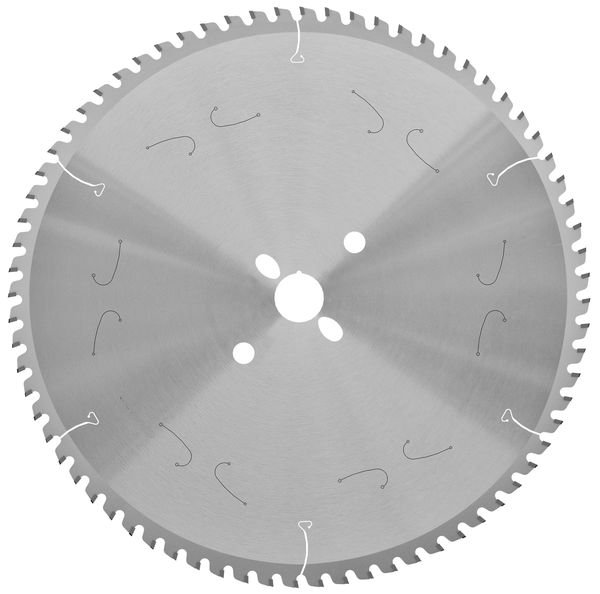

Panel Sizing Saw Blades DP - U-Cut "TR-F-FA"

Product

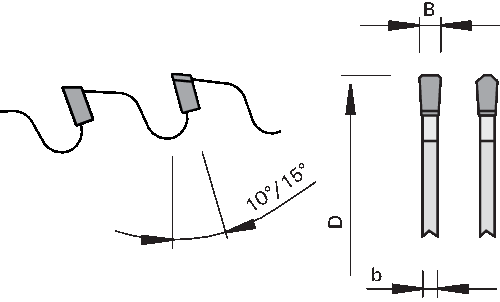

Drawing

  • Polycrystalline diamond [DP]

Article

Description

Machine / Application

  • horizontal panel sizing saws
  • for sizing cuts in raw and plastic-laminated panels

Design

  • Extra sturdy design for universal use
  • Tooth configuration: triple chip - flat chamfer "TR-F-FA"
  • Cutting material: DP

Advantages

  • A larger wedge angle ensures a greater resistance to breakage at the tooth

Notes

  • NL**- Combi3 = 2/10/60 + 2/9/46 + 2/9.5/46.5 + 2/7/42
  • NL**- Combi7 = 2/9/110 + 2/10/80 + 2/11/85 + 2/11/115 + 2/11/148 + 2/14/100 + 2/14/125 + 2/19/120
  • Further dimensions on request

Table- and picture caption ...

Ø D
[mm] 		B
[mm] 		b
[mm] 		Ø d
[mm] 		Z NL Hook angle
[°] 		Tooth geometry Machine/Type Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

300 3,2 2.4 30 72 2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42 +2/13/94 10 TR-F-FA Schelling LS1 193342
|
308 3,2 2.4 60 84 2/10/80 + 2/11/115 + 2/14/125 + 2/19/120 + 2/11/85 + 2/11/148 + 2/14/100 + 2/9/110 10 TR-F-FA HOMAG SAWTEQ B-320 flexTec 193343
|
350 4,4 3.2 30 72 2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42 +2/13/94 10 TR-F-FA HOLZ-HER, Mayer, Panhans, Schelling SCM 193344
|
350 4,4 3.2 60 72 2/10/80 + 2/11/115 + 2/14/125 + 2/19/120 + 2/11/85 + 2/11/148 + 2/14/100 + 2/9/110 10 TR-F-FA HOMAG (HOLZMA), Nanxing 193345
|
350 4,4 3.2 75 72 4/15/105 + 2/7/110 10 TR-F-FA Giben 193346
|
360 4,4 3.2 30 72 2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42 +2/13/94 10 TR-F-FA Schelling 80475809
|
380 4,4 3.2 60 72 2/10/80 + 2/11/115 + 2/14/125 + 2/19/120 + 2/11/85 + 2/11/148 + 2/14/100 + 2/9/110 15 TR-F-FA HOMAG (HOLZMA), Nanxing 193347
|
380 4,4 3.2 60 84 2/10/80 + 2/11/115 + 2/14/125 + 2/19/120 + 2/11/85 + 2/11/148 + 2/14/100 + 2/9/110 15 TR-F-FA HOMAG (HOLZMA), Nanxing 193348
|
380 4,8 3.5 60 72 2/10/80 + 2/11/115 + 2/14/125 + 2/19/120 + 2/11/85 + 2/11/148 + 2/14/100 + 2/9/110 15 TR-F-FA HOMAG (HOLZMA), Nanxing 193349
|
400 4,4 3.2 30 72 2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42 +2/13/94 15 TR-F-FA HOLZ-HER, Irion, Mayer, Panhans, Scheer, Schelling 193350
|
450 4,8 3.5 60 72 2/10/80 + 2/11/115 + 2/14/125 + 2/19/120 + 2/11/85 + 2/11/148 + 2/14/100 + 2/9/110 15 TR-F-FA HOMAG (HOLZMA), Nanxing 193351
|
460 4,4 3.2 30 72 2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42 +2/13/94 10 TR-F-FA Schelling 80494103
|
