TwinBlade Ziehklingen-Wechselplatten HW - Anti-Weissbruchfase - IMA
Produkt

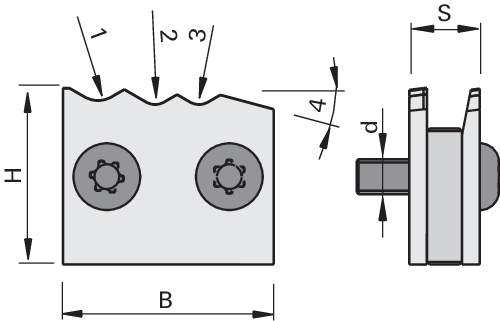

Zeichnung
-
-
- Hartmetall [HW]
Artikel
Beschreibung
Maschine / Anwendung
- Maschinen IMA
Ausführung
- Schneidkante mit Anti-Weissbruchfase
- Schneidstoff: HW
- HL Board 06 für Kunststoffe
- topline (polierte Spanfläche und Microschliff der Freifläche)
Vorteile
- kein Auftreten von Weissbruch
- Vermeidung von Nacharbeit
- Hochglanzkanten in Acryl möglich
Hinweise
|
R
[mm] |
B
[mm] |
H
[mm] |
S
[mm] |
Ø d
[mm] |
LEUCODUR |
VP
[St.] |
L/R | Bemerkung | Ident-No. | Vergl. | Anfr. | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
Gesuchte Abmessungen werden nicht aufgeführt?
ab Lager lieferbar |
|||||||||||
| 3; 2; 2; 30° | 24 | 20.1 | 8 | 5,0 | HL Board 06 topline | 1 | R | topline | 80327522 | ||
| 3; 2; 2; 30° | 24 | 20.1 | 8 | 5,0 | HL Board 06 topline | 1 | L | topline | 80327255 | ||
| 2; 1,5; 1; 45° | 24 | 20.1 | 8 | 5,0 | HL Board 06 topline | 1 | R | topline | 80327183 | ||
| 2; 1,5; 1; 45° | 24 | 20.1 | 8 | 5,0 | HL Board 06 topline | 1 | L | topline | 80327184 | ||
| 2; 1,2; 1; 45° | 24 | 20.1 | 8 | 5,0 | HL Board 06 topline | 1 | R | topline | 80328447 | ||
| 2; 1,2; 1; 45° | 24 | 20.1 | 8 | 5,0 | HL Board 06 topline | 1 | L | topline | 80328448 | ||
| 2; 1; 1; 45° | 24 | 20.1 | 8 | 5,0 | HL Board 06 topline | 1 | R | topline | 80337118 | ||
| 2; 1; 1; 45° | 24 | 20.1 | 8 | 5,0 | HL Board 06 topline | 1 | L | topline | 80337119 | ||
| 1,3; 1; 1; 15° | 24 | 20.1 | 8 | 5,0 | HL Board 06 topline | 1 | R | topline | 80342343 | ||
| 1,3; 1; 1; 15° | 24 | 20.1 | 8 | 5,0 | HL Board 06 topline | 1 | L | topline | 80342344 | ||
| 3; 1,5; 1,5; 45° | 24 | 20.1 | 8 | 5,0 | HL Board 06 topline | 1 | L | topline | 80343463 | ||
| 3; 2,5; 1,5; 45° | 24 | 20.1 | 8 | 5,0 | HL Board 06 topline | 1 | R | topline | 80350594 | ||
| 3; 2,5; 1,5; 45° | 24 | 20.1 | 8 | 5,0 | HL Board 06 topline | 1 | L | topline | 80350593 | ||
| 2,5; 1,5; 30° | 24 | 20.1 | 8 | 5,0 | HL Board 06 topline | 1 | R | topline | 80355718 | ||
| 2,5; 1,5; 30° | 24 | 20.1 | 8 | 5,0 | HL Board 06 topline | 1 | L | topline | 80355719 | ||
| 2; 1,5; 1 | 24 | 20.1 | 8 | 5,0 | HL Board 06 topline | 1 | R | topline | 80357038 | ||
| 2; 1,5; 1 | 24 | 20.1 | 8 | 5,0 | HL Board 06 topline | 1 | L | topline | 80357039 | ||
| 2; 2; 1; 1 | 24 | 20.1 | 8 | 5,0 | HL Board 06 topline | 1 | R | topline | 80356483 | ||
| 2; 2; 1; 1 | 24 | 20.1 | 8 | 5,0 | HL Board 06 topline | 1 | L | topline | 80357389 | ||
| 3; 2; 1; 15° | 24 | 20.1 | 8 | 5,0 | HL Board 06 topline | 1 | R | topline | 80357926 | ||
| 3; 2; 1; 15° | 24 | 20.1 | 8 | 5,0 | HL Board 06 topline | 1 | L | topline | 80357927 | ||
| 3; 2; 1 | 24 | 20.1 | 8 | 5,0 | HL Board 06 topline | 1 | R | topline | 80360627 | ||
| 3; 2; 1 | 24 | 20.1 | 8 | 5,0 | HL Board 06 topline | 1 | L | topline | 80360628 | ||
| 3; 2; 1,5 | 24 | 20.1 | 8 | 5,0 | HL Board 06 topline | 1 | R | topline | 80361148 | ||
| 3; 2; 1,5 | 24 | 20.1 | 8 | 5,0 | HL Board 06 topline | 1 | L | topline | 80361149 | ||
| 0,8; 1,5; 1,2; 1,2 | 24 | 20.1 | 8 | 5,0 | HL Board 06 topline | 1 | R | topline | 80365346 | ||
| 2,5; 1,5; 1,2; 1,2 | 24 | 20.1 | 8 | 5,0 | HL Board 06 topline | 1 | L | topline | 80365348 | ||
| 2; 2; 1 | 24 | 20.1 | 8 | 5,0 | HL Board 06 topline | 1 | R | topline | 80370785 | ||
| 2; 2; 1 | 24 | 20.1 | 8 | 5,0 | HL Board 06 topline | 1 | L | topline | 80370786 | ||
