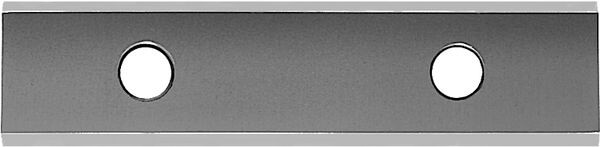

Wendeplatten HW mit 2 Schneidkanten
Produkt

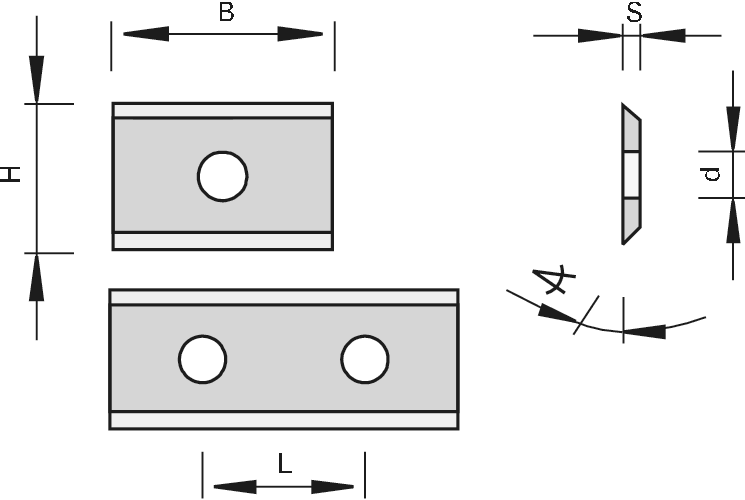

Zeichnung
-
- Hartmetall [HW]
Artikel
Beschreibung
Maschine / Anwendung
Ausführung
- topline (polierte Spanfläche und Microschliff der Freifläche)
- Schneidstoff: HW
- HL Board 01 für Holzwerkstoffe und Kunststoffe
- HL Board 02 für Holzwerkstoffe und Kunststoffe
- HL Board 06 für Holzwerkstoffe, Kunststoffe, Hart- und Weichhölzer
- HL Board 05 für Holzwerkstoffe, Kunststoffe und Harthölzer
- HL Solid 20 für Hart- und Weichhölzer
- HL Solid 20 topline für Hart- und Weichhölzer
Vorteile
- lange Standwege bei bester Schnittqualität in Massivhölzern
- EcoKnife: leichtere Wendeplatte, weniger Unwucht
Hinweise
- Verpackungseinheit 10 Stück
|
Abmessung
[mm] |
B
[mm] |
H
[mm] |
S
[mm] |
Ø d
[mm] |
L
[mm] |
Type |
Keil∡
[°] |
LEUCODUR |
VP
[St.] |
Maschine/Type | Bemerkung | Ident-No. | Vergl. | Anfr. | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Gesuchte Abmessungen werden nicht aufgeführt?
ab Lager lieferbar |
||||||||||||||
| 7,5x12x1,5 | 7,5 | 12 | 1.5 | 4,0 | 2 | 55 | HL Board 05 | 10 | 052543 | |||||
| 7,5x12x1,5 | 7,5 | 12 | 1.5 | 4,0 | 45 | HL Solid 20 | 10 | 173473 | ||||||
| 9,6x12x1,5 | 9,6 | 12 | 1.5 | 4,0 | 55 | HL Board 05 | 10 | 171163 | ||||||
| 10,9x10,9x1,5 | 10,9 | 10.9 | 1.5 | 4,0 | 55 | HL Board 05 | 10 | 9250413 | ||||||
| 11x12x1,5 | 11 | 12 | 1.5 | 4,0 | 55 | HL Board 05 | 10 | 162637 | ||||||
| 13x12x1,5 | 13 | 12 | 1.5 | 4,0 | 55 | HL Board 05 | 10 | 162638 | ||||||
| 15x12x1,5 | 15 | 12 | 1.5 | 4,0 | 55 | HL Board 05 | 10 | 003081 | ||||||
| 15x12x1,5 | 15 | 12 | 1.5 | 4,0 | 45 | HL Solid 20 | 10 | 173467 | ||||||
| 15,7x12x1,5 | 15,7 | 12 | 1.5 | 4,0 | 55 | HL Board 05 | 10 | 163846 | ||||||
| 17x12x1,5 | 17 | 12 | 1.5 | 4,0 | 55 | HL Board 05 | 10 | 162639 | ||||||
| 18x12x1,5 | 18 | 12 | 1.5 | 4,0 | 55 | HL Board 05 | 10 | 162520 | ||||||
| 19x12x1,5 | 19 | 12 | 1.5 | 4,0 | 55 | HL Board 05 | 10 | 164242 | ||||||
| 20x12x1,5 | 20 | 12 | 1.5 | 4,0 | 55 | HL Board 02 | 10 | 176469 | ||||||
| 20x12x1,5 | 20 | 12 | 1.5 | 4,0 | 55 | HL Board 06 | 10 | 178287 | ||||||
| 20x12x1,5 | 20 | 12 | 1.5 | 4,0 | W, G | 55 | HL Board 05 | 10 | Räumer | 003082 | ||||
| 20x12x1,5 | 20 | 12 | 1.5 | 4,0 | 45 | HL Solid 20 topline | 10 | 176265 | ||||||
| 20 | 14.3 | 2.5 | 6,3 | 55 | HL Solid 20 | 10 | Homag | 168509 | ||||||
| 30x12x1,5 | 30 | 12 | 1.5 | 4,0 | 14 | 55 | HL Board 02 | 10 | 176470 | |||||
| 30x12x1,5 | 30 | 12 | 1.5 | 4,0 | 14 | 55 | HL Board 06 | 10 | 178288 | |||||
| 30x12x1,5 | 30 | 12 | 1.5 | 4,0 | 14 | 55 | HL Board 05 | 10 | Wendeplatten Universal | 003083 | ||||
| 30x12x1,5 | 30 | 12 | 1.5 | 4,0 | 14 | 55 | HL Board 05 plus | 10 | 187325 | |||||
| 30x12x1,5 | 30 | 12 | 1.5 | 4,0 | 14 | 45 | HL Solid 20 topline | 10 | Wendeplatten Massivholz | 176266 | ||||
| 40x12x1,5 | 40 | 12 | 1.5 | 4,0 | 26 | 55 | HL Board 02 | 10 | 182191 | |||||
| 40x12x1,5 | 40 | 12 | 1.5 | 4,0 | 26 | 55 | HL Board 05 | 10 | 164078 | |||||
| 40x12x1,5 | 40 | 12 | 1.5 | 4,0 | 26 | 45 | HL Solid 20 topline | 10 | 176267 | |||||
| 50x12x1,5 | 50 | 12 | 1.5 | 4,0 | 26 | 55 | HL Board 02 | 10 | 176471 | |||||
| 50x12x1,5 | 50 | 12 | 1.5 | 4,0 | 26 | 55 | HL Board 06 | 10 | 178289 | |||||
| 50x12x1,5 | 50 | 12 | 1.5 | 4,0 | 26 | 55 | HL Board 05 | 10 | 003085 | |||||
| 50x12x1,5 | 50 | 12 | 1.5 | 4,0 | 26 | 55 | HL Board 05 plus | 10 | 187326 | |||||
| 50x12x1,5 | 50 | 12 | 1.5 | 4,0 | 26 | 45 | HL Solid 20 topline | 10 | 176268 | |||||
| 60x12x1,5 | 60 | 12 | 1.5 | 4,0 | 26 | 55 | HL Board 05 | 10 | 003086 | |||||
| 60x12x1,5 | 60 | 12 | 1.5 | 4,0 | 26 | 45 | HL Solid 20 | 10 | 173472 | |||||
| 60x12x1,5 | 60 | 12 | 1.5 | 4,0 | 26 | 45 | HL Solid 20 topline | 10 | 176269 | |||||
| 80x13x2,2 | 80 | 13 | 2.2 | 4,0 | 59-61 | 55 | HL Board 06 | 10 | 003087 | |||||
| 80x13x2,2 | 80 | 13 | 2.2 | 4,0 | 59-61 | 45 | HL Solid 20 topline | 10 | 181677 | |||||
| 100x13x2,2 | 100 | 13 | 2.2 | 4,0 | 59-61 | 55 | HL Board 06 | 10 | 003088 | |||||
| 120x13x2,2 | 120 | 13 | 2.2 | 4,0 | 59-61 | 55 | HL Board 06 | 10 | 003089 | |||||
