Radius-Wechselplatten HW mit 2 Schneidradien und Bodenfase
Produkt

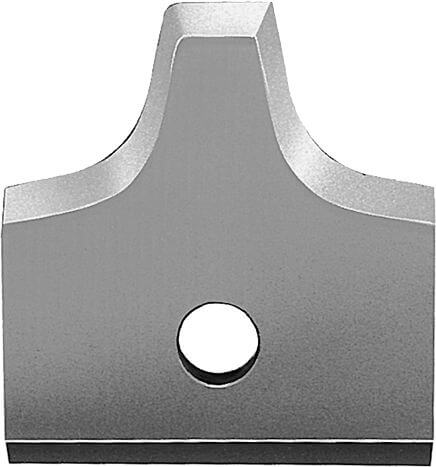

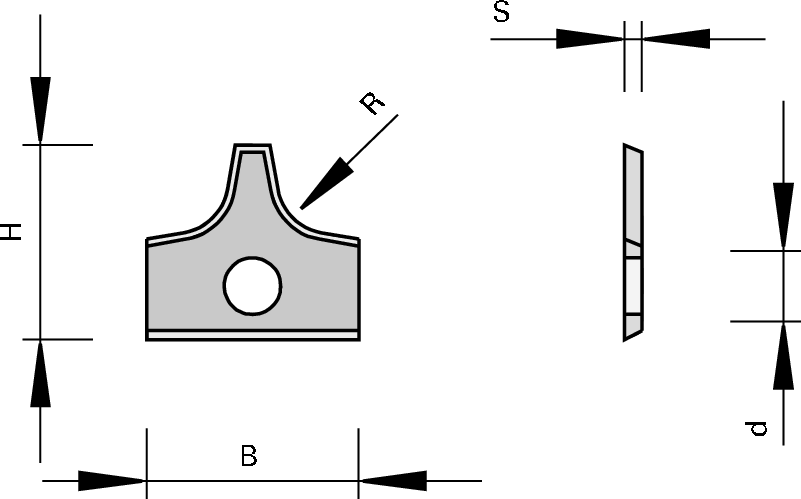

Zeichnung
-
- Hartmetall [HW]
Artikel
Beschreibung
Maschine / Anwendung
- Type A für den Einsatz in Kanten-Abrund-Messerköpfen
- Type B für den Einsatz in Ziehklingen-Haltern
Ausführung
- Schneidstoff: HW
- HL Board 05 für Holzwerkstoffe, Kunststoffe und Harthölzer
Vorteile
Hinweise
|
Abmessung
[mm] |
R
[mm] |
B
[mm] |
H
[mm] |
S
[mm] |
Ø d
[mm] |
Type |
Keil∡
[°] |
Profilauslauf
[°] |
LEUCODUR |
VP
[St.] |
Maschine/Type | Ident-No. | Vergl. | Anfr. | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Gesuchte Abmessungen werden nicht aufgeführt?
ab Lager lieferbar |
||||||||||||||
| 12x12x1,5 R2 | 2,0 | 12 | 12 | 1.5 | 4,0 | A | 55 | 5 | HL Board 05 | 10 | HOLZ-HER | 170340 | ||
| 12x12x1,5 R3 | 3,0 | 12 | 12 | 1.5 | 4,0 | A | 55 | 5 | HL Board 05 | 10 | HOLZ-HER | 170341 | ||
| 16x15,5x2 R2 | 2,0 | 16 | 15.5 | 2 | 4,4 | A | 55 | 10 | HL Board 05 | 10 | Brandt | 182087 | ||
| 16x17,5x2 R1,5 | 1,0 | 16 | 17.5 | 2 | 4,4 | A | 55 | 10 | HL Board 05 | 10 | HOLZ-HER, Homag, Ott, IMA, Wilmsmeyer, Brandt | 186745 | ||
| 16x17,5x2 R1,5 | 1,5 | 16 | 17.5 | 2 | 4,4 | A | 55 | 10 | HL Board 05 | 10 | HOLZ-HER, Homag, Ott, IMA, Wilmsmeyer, Brandt | 176583 | ||
| 16x17,5x2 R2 | 2,0 | 16 | 17.5 | 2 | 4,4 | A | 55 | 10 | HL Board 05 | 10 | HOLZ-HER, Homag, Ott, IMA, Wilmsmeyer, Brandt | 163489 | ||
| 16x17,5x2 R2 | 2,0 | 16 | 17.5 | 2 | 4,4 | A | 55 | 10 | HL Board 05 | 10 | Brandt | 180153 | ||
| 16x17,5x2 R2,5 | 2,5 | 16 | 17.5 | 2 | 4,4 | A | 55 | 10 | HL Board 05 | 10 | 171178 | |||
| 16x17,5x2 R3 | 3,0 | 16 | 17.5 | 2 | 4,4 | A | 55 | 10 | HL Board 05 | 10 | HOLZ-HER, Homag, Ott, IMA, Wilmsmeyer, Brandt | 163490 | ||
| 16x17,5x2 R3 | 3,0 | 16 | 17.5 | 2 | 4,4 | A | 55 | 10 | HL Board 05 | 10 | Brandt | 180154 | ||
| 16x17,5x2 R4 | 4,0 | 16 | 17.5 | 2 | 4,4 | A | 55 | 10 | HL Board 05 | 10 | HOLZ-HER, Homag, Ott, IMA, Wilmsmeyer, Brandt | 163491 | ||
| 16x17,5x2 R5 | 5,0 | 16 | 17.5 | 2 | 4,4 | A | 55 | 10 | HL Board 05 | 10 | HOLZ-HER, Homag, Ott, IMA, Wilmsmeyer, Brandt | 163492 | ||
| 2,0 | 16 | 17.5 | 2 | 3,0 | B | 55 | 10 | HL Board 05 | 10 | IMA, Wilmsmayer, Torwegge | 173475 | |||
| 2,5 | 16 | 17.5 | 2 | 3,0 | B | 55 | 10 | HL Board 05 | 10 | IMA, Wilmsmayer, Torwegge | 173476 | |||
| 3,0 | 16 | 17.5 | 2 | 3,0 | B | 55 | 10 | HL Board 05 | 10 | IMA, Wilmsmayer, Torwegge | 173477 | |||
| 4,0 | 16 | 17.5 | 2 | 3,0 | B | 55 | 10 | HL Board 05 | 10 | IMA, Wilmsmayer, Torwegge | 173478 | |||
| 5,0 | 16 | 17.5 | 2 | 3,0 | B | 55 | 10 | HL Board 05 | 10 | IMA, Wilmsmayer, Torwegge | 173479 | |||
