Radius-Wechselplatten HW mit 1 Schneidradius und Bodenfase

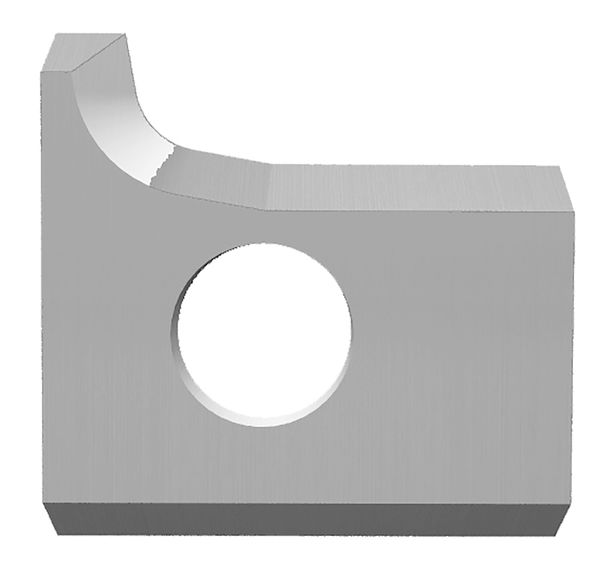

Produkt

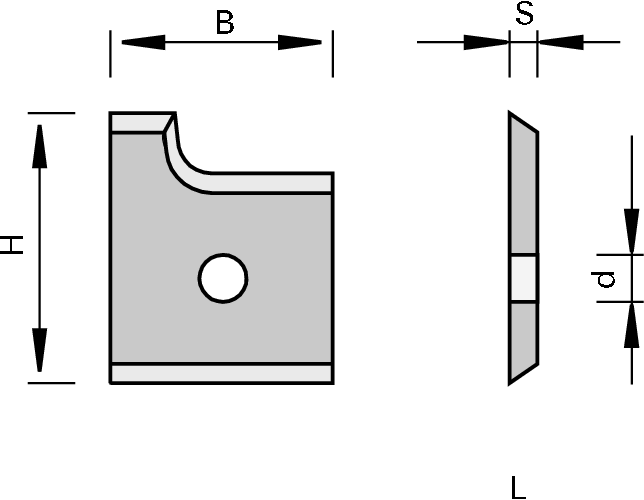

Zeichnung
-
- Hartmetall [HW]
Artikel
Beschreibung
Maschine / Anwendung
- für den Einsatz in Kanten-Abrund-Messerköpfen
Ausführung
- Schneidstoff: HW
- HL Board 05 und HL Board 06 für Holzwerkstoffe, Kunststoffe und Harthölzer
Vorteile
Hinweise
- Verpackungseinheit 10 Stück
|
Abmessung
[mm] |
R
[mm] |
B
[mm] |
H
[mm] |
S
[mm] |
Ø d
[mm] |
Type |
Keil∡
[°] |
LEUCODUR |
VP
[St.] |
L/R | Ident-No. | Vergl. | Anfr. | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Gesuchte Abmessungen werden nicht aufgeführt?
ab Lager lieferbar |
|||||||||||||
| 12x14,5x2 R1 | 1,0 | 12 | 14.5 | 2 | 4,0 | 2 | 55 | HL Board 05 | 10 | L | 187335 | ||
| 12x14,5x2 R1 | 1,0 | 12 | 14.5 | 2 | 4,0 | 2 | 55 | HL Board 05 | 10 | R | 187336 | ||
| 12x14,5x2 R1,5 | 1,5 | 12 | 14.5 | 2 | 4,0 | 2 | 55 | HL Board 05 | 10 | L | 187337 | ||
| 12x14,5x2 R1,5 | 1,5 | 12 | 14.5 | 2 | 4,0 | 2 | 55 | HL Board 05 | 10 | R | 187338 | ||
| 12x14,5x2 R2 | 2,0 | 12 | 14.5 | 2 | 4,0 | 2 | 55 | HL Board 05 | 10 | L | 172142 | ||
| 12x14,5x2 R2 | 2,0 | 12 | 14.5 | 2 | 4,0 | 2 | 55 | HL Board 05 | 10 | R | 172141 | ||
| 12x14,5x2 R2,5 | 2,5 | 12 | 14.5 | 2 | 4,0 | 2 | 55 | HL Board 05 | 10 | L | 171224 | ||
| 12x14,5x2 R2,5 | 2,5 | 12 | 14.5 | 2 | 4,0 | 2 | 55 | HL Board 05 | 10 | R | 171223 | ||
| 12x14,5x2 R3 | 3,0 | 12 | 14.5 | 2 | 4,0 | 2 | 55 | HL Board 05 | 10 | L | 172144 | ||
| 12x14,5x2 R3 | 3,0 | 12 | 14.5 | 2 | 4,0 | 2 | 55 | HL Board 05 | 10 | R | 172143 | ||
| 14,5x14,5x2 R1 | 1,0 | 14,5 | 14.5 | 2 | 5,0 | 55 | HL Board 06 | 10 | L | 187331 | |||
| 14,5x14,5x2 R1 | 1,0 | 14,5 | 14.5 | 2 | 5,0 | 55 | HL Board 06 | 10 | R | 187332 | |||
| 14,5x14,5x2 R1,5 | 1,5 | 14,5 | 14.5 | 2 | 5,0 | 55 | HL Board 06 | 10 | L | 187333 | |||
| 14,5x14,5x2 R1,5 | 1,5 | 14,5 | 14.5 | 2 | 5,0 | 55 | HL Board 06 | 10 | R | 187334 | |||
| 14,5x14,5x2 R2 | 2,0 | 14,5 | 14.5 | 2 | 5,0 | 55 | HL Board 06 | 10 | L | 185377 | |||
| 14,5x14,5x2 R2 | 2,0 | 14,5 | 14.5 | 2 | 5,0 | 55 | HL Board 06 | 10 | R | 185376 | |||
| 14,5x14,5x2 R2,5 | 2,5 | 14,5 | 14.5 | 2 | 5,0 | 55 | HL Board 06 | 10 | L | 181657 | |||
| 14,5x14,5x2 R2,5 | 2,5 | 14,5 | 14.5 | 2 | 5,0 | 55 | HL Board 06 | 10 | R | 181658 | |||
