3P-Blanketts HW (Hochformat)
Produkt

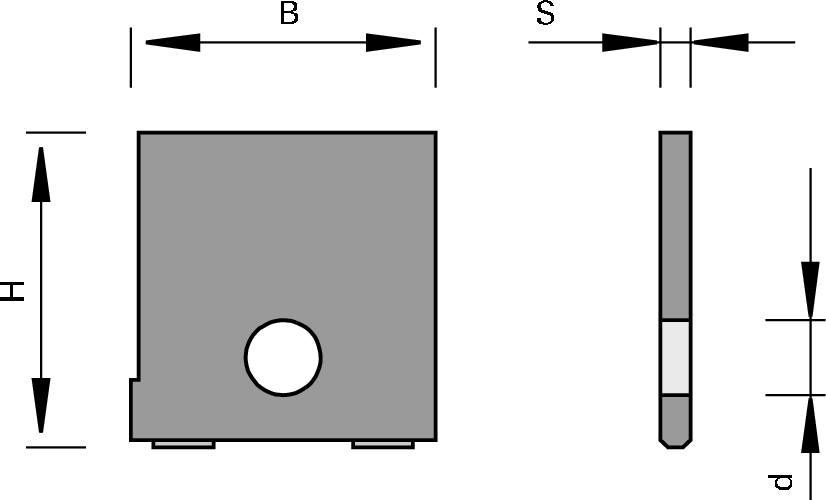

Zeichnung
-
- Hartmetall [HW]
Artikel
Beschreibung
Maschine / Anwendung
- für den Einsatz in LEUCO EcoPro- und Sonder-Messerköpfen
Ausführung
- Zweipunkt-Auflage und Punkt-Anschlag
- optional mit topline-Schliff (polierte Spanfläche)
- Schneidstoff: HW
- HL Board 06 für Holzwerkstoffe, Kunststoffe und Harthölzer
- HL Solid 60 für Weichhölzer
Vorteile
- exaktes Positionieren der Blanketts beim Profilieren sowie der Profilwechselplatte im Messerkopf
- topline-Ausführung: höchste Schnittqualität und deutlich verbesserte Schneidkanten
Hinweise
- nach Kundenwunsch frei profilierbar
|
B
[mm] |
H
[mm] |
S
[mm] |
Ø d
[mm] |
LEUCODUR |
VP
[St.] |
L/R | Ident-No. | Vergl. | Anfr. | |
|---|---|---|---|---|---|---|---|---|---|
|
Gesuchte Abmessungen werden nicht aufgeführt?
ab Lager lieferbar |
|||||||||
| 12,5 | 20.5 | 2 | 5,0 | HL Board 06 | 10 | N | 178509 | ||
| 15,5 | 20.5 | 2 | 5,0 | HL Board 06 | 10 | N | 178510 | ||
| 15,5 | 25.5 | 2 | 5,0 | HL Board 06 | 10 | N | 178511 | ||
| 16,7 | 25.9 | 2 | 5,0 | HL Board 06 | 10 | N | 178513 | ||
| 18,4 | 36.3 | 2 | 5,0 | HL Board 06 | 10 | N | 178516 | ||
| 20,3 | 20.5 | 2 | 5,0 | HL Board 06 | 10 | N | 178517 | ||
| 20,3 | 25.5 | 2 | 5,0 | HL Board 06 | 10 | N | 178518 | ||
| 20,3 | 30.4 | 2 | 5,0 | HL Board 06 | 10 | N | 178519 | ||
| 22,3 | 25.5 | 2 | 5,0 | HL Board 06 | 10 | N | 178520 | ||
| 24,3 | 28.4 | 2 | 5,0 | HL Board 06 | 10 | N | 178522 | ||
| 25,3 | 35.3 | 2 | 5,0 | HL Board 06 | 10 | N | 178524 | ||
| 28,2 | 35.3 | 2 | 5,0 | HL Board 06 | 10 | N | 178526 | ||
| 12,5 | 20.5 | 2 | 5,0 | HL Solid 60 | 10 | N | 179509 | ||
| 15,5 | 25.5 | 2 | 5,0 | HL Solid 60 | 10 | N | 179511 | ||
| 16,7 | 25.9 | 2 | 5,0 | HL Solid 60 | 10 | N | 179513 | ||
| 18,4 | 36.3 | 2 | 5,0 | HL Solid 60 | 10 | N | 179516 | ||
| 20,3 | 30.4 | 2 | 5,0 | HL Solid 60 | 10 | N | 179519 | ||
| 24,3 | 28.4 | 2 | 5,0 | HL Solid 60 | 10 | N | 179522 | ||
| 25,3 | 35.3 | 2 | 5,0 | HL Solid 60 | 10 | N | 179524 | ||
| 28,2 | 35.3 | 2 | 5,0 | HL Solid 60 | 10 | N | 179526 | ||
| 12,5 | 20.5 | 2 | 5,0 | HL Board 06 topline | 10 | L | 179547 | ||
| 12,5 | 20.5 | 2 | 5,0 | HL Board 06 topline | 10 | R | 179548 | ||
| 15,5 | 25.5 | 2 | 5,0 | HL Board 06 topline | 10 | L | 179551 | ||
| 15,5 | 25.5 | 2 | 5,0 | HL Board 06 topline | 10 | R | 179552 | ||
| 16,7 | 25.9 | 2 | 5,0 | HL Board 06 topline | 10 | L | 179555 | ||
| 16,7 | 25.9 | 2 | 5,0 | HL Board 06 topline | 10 | R | 179556 | ||
| 18,4 | 36.3 | 2 | 5,0 | HL Board 06 topline | 10 | L | 179561 | ||
| 18,4 | 36.3 | 2 | 5,0 | HL Board 06 topline | 10 | R | 179562 | ||
| 20,3 | 30.4 | 2 | 5,0 | HL Board 06 topline | 10 | L | 179567 | ||
| 20,3 | 30.4 | 2 | 5,0 | HL Board 06 topline | 10 | R | 179568 | ||
| 22,3 | 25.5 | 2 | 5,0 | HL Board 06 topline | 10 | L | 179569 | ||
| 22,3 | 25.5 | 2 | 5,0 | HL Board 06 topline | 10 | R | 179570 | ||
| 24,3 | 28.4 | 2 | 5,0 | HL Board 06 topline | 10 | L | 179573 | ||
| 24,3 | 28.4 | 2 | 5,0 | HL Board 06 topline | 10 | R | 179574 | ||
| 25,3 | 35.3 | 2 | 5,0 | HL Board 06 topline | 10 | L | 179577 | ||
| 25,3 | 35.3 | 2 | 5,0 | HL Board 06 topline | 10 | R | 179578 | ||
| 28,2 | 35.3 | 2 | 5,0 | HL Board 06 topline | 10 | L | 179581 | ||
| 28,2 | 35.3 | 2 | 5,0 | HL Board 06 topline | 10 | R | 179582 | ||
| 12,5 | 20.5 | 2 | 5,0 | HL Solid 60 topline | 10 | L | 179621 | ||
| 12,5 | 20.5 | 2 | 5,0 | HL Solid 60 topline | 10 | R | 179622 | ||
| 15,5 | 25.5 | 2 | 5,0 | HL Solid 60 topline | 10 | L | 179625 | ||
| 15,5 | 25.5 | 2 | 5,0 | HL Solid 60 topline | 10 | R | 179626 | ||
| 16,7 | 25.9 | 2 | 5,0 | HL Solid 60 topline | 10 | L | 179629 | ||
| 16,7 | 25.9 | 2 | 5,0 | HL Solid 60 topline | 10 | R | 179630 | ||
| 18,4 | 36.3 | 2 | 5,0 | HL Solid 60 topline | 10 | L | 179635 | ||
| 18,4 | 36.3 | 2 | 5,0 | HL Solid 60 topline | 10 | R | 179636 | ||
| 20,3 | 30.4 | 2 | 5,0 | HL Solid 60 topline | 10 | L | 179641 | ||
| 20,3 | 30.4 | 2 | 5,0 | HL Solid 60 topline | 10 | R | 179642 | ||
| 22,3 | 25.5 | 2 | 5,0 | HL Solid 60 topline | 10 | L | 179643 | ||
| 22,3 | 25.5 | 2 | 5,0 | HL Solid 60 topline | 10 | R | 179644 | ||
| 24,3 | 28.4 | 2 | 5,0 | HL Solid 60 topline | 10 | L | 179647 | ||
| 24,3 | 28.4 | 2 | 5,0 | HL Solid 60 topline | 10 | R | 179648 | ||
| 25,3 | 35.3 | 2 | 5,0 | HL Solid 60 topline | 10 | L | 179651 | ||
| 25,3 | 35.3 | 2 | 5,0 | HL Solid 60 topline | 10 | R | 179652 | ||
| 28,2 | 35.3 | 2 | 5,0 | HL Solid 60 topline | 10 | L | 179655 | ||
| 28,2 | 35.3 | 2 | 5,0 | HL Solid 60 topline | 10 | R | 179656 | ||
