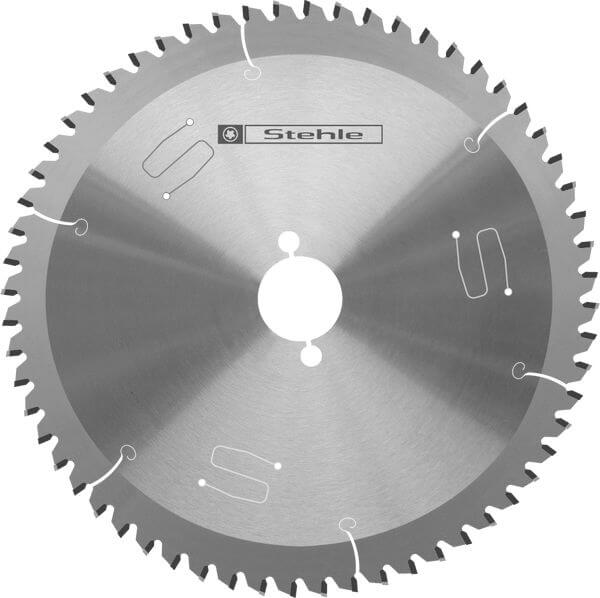

Hand-Kreissägeblätter HW "TR-F"
Produkt

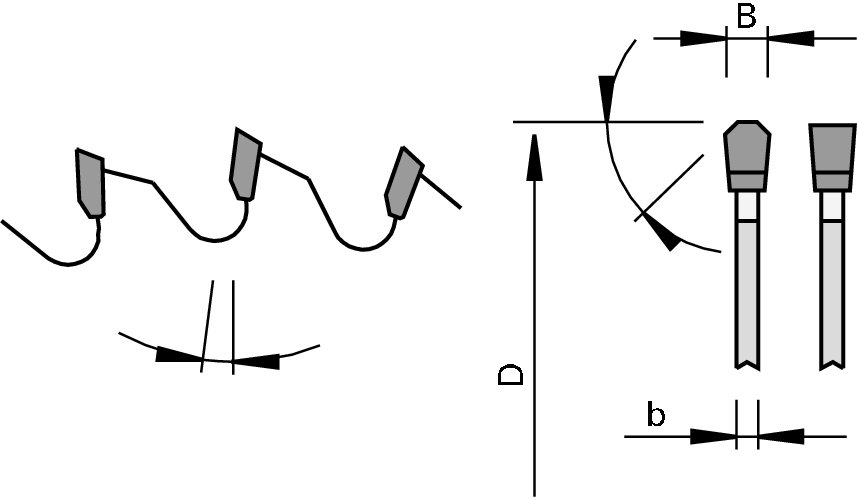

Zeichnung
-
-
- Hartmetall [HW]
Artikel
Beschreibung
Maschine / Anwendung
- Hand-Kreissägen
- für Längs- und Querschnitte in Massivhölzern, Holzwerkstoffen und NE-Metall
Ausführung
- Spanwinkel negativ
- Zahnform: Trapez-Flach "TR-F"
- Schneidstoff: HW HL Board 10
Vorteile
Hinweise
|
Ø D
[mm] |
B
[mm] |
b
[mm] |
Ø d
[mm] |
Z | NL |
Span∡
[°] |
Zahnform | Schnittqualität* |
Abmessung
[mm] |
LEUCODUR | Ident-No. | Vergl. | Anfr. | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Gesuchte Abmessungen werden nicht aufgeführt?
ab Lager lieferbar |
|||||||||||||
| 150 | 2,8 | 2.2 | 20 | 42 | 2/6/32,5 | -6 | TR-F | ▲▲ | HL Board 10 | 58115002 | |||
| 160 | 2,2 | 1.6 | 20 | 42 | 2/6/32,5 | -6 | TR-F | ▲▲ | 160x2,2x1,6x20 Z=42 TR-F | HL Board 10 | 58115004 | ||
| 160 | 2,2 | 1.6 | 20 | 56 | 2/6/32,5 | -6 | TR-F | ▲▲▲ | HL Board 10 | 58115042 | |||
| 160 | 2,8 | 2.2 | 30 | 42 | 2/7/42 | -6 | TR-F | ▲▲ | HL Board 10 | 58115026 | |||
| 180 | 2,8 | 2.2 | 20 | 48 | 2/6/32,5 | -6 | TR-F | ▲▲ | HL Board 10 | 58115007 | |||
| 180 | 2,8 | 2.2 | 30 | 48 | 2/7/42 | -6 | TR-F | ▲▲ | HL Board 10 | 58115008 | |||
| 190 | 2,8 | 2.2 | 20 | 54 | 2/6/32,5 | -6 | TR-F | ▲▲ | HL Board 10 | 58115009 | |||
| 190 | 2,8 | 2.2 | 30 | 54 | 2/7/42 | -6 | TR-F | ▲▲ | 190x2,8x1,6x30 Z= 54 TR-F | HL Board 10 | 58115010 | ||
| 200 | 2,8 | 2.2 | 30 | 54 | 2/7/42 | -6 | TR-F | ▲▲ | HL Board 10 | 58115011 | |||
| 210 | 2,8 | 2.2 | 30 | 54 | 2/7/42 | -6 | TR-F | ▲▲ | HL Board 10 | 58115012 | |||
| 216 | 2,8 | 2.2 | 30 | 60 | 2/7/42 | -6 | TR-F | ▲▲ | 216x2,8x2,2x30 Z= 60 TR-F | HL Board 10 | 58115024 | ||
| 216 | 2,8 | 2.2 | 30 | 80 | 2/7/42 | -6 | TR-F | ▲▲▲ | HL Board 10 | 58115034 | |||
| 220 | 2,8 | 2.2 | 30 | 54 | 2/7/42 | -6 | TR-F | ▲▲ | HL Board 10 | 58115021 | |||
| 230 | 2,8 | 2.2 | 30 | 64 | 2/7/42 | -6 | TR-F | ▲▲ | HL Board 10 | 58115014 | |||
| 235 | 2,8 | 2.2 | 30 | 64 | 2/7/42 | -6 | TR-F | ▲▲ | 235x2,8x2,2x30 Z= 64 TR-F | 58115018 | |||
| 260 | 2,8 | 2.2 | 30 | 72 | 2/7/42 + 2/9,5/46,5 + 2/10/60 | -6 | TR-F | ▲▲ | 260x2,8x2,2x30 Z=72 TR-F | 80343074 | |||
