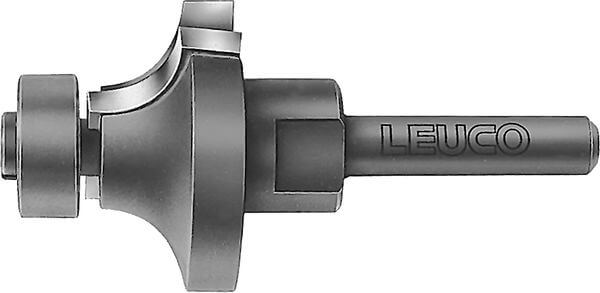

Abrund-Fräser HW-bestückt mit Anlaufring
Artikel
Beschreibung
Maschine / Anwendung
- Handoberfräsen
- zum Abrunden von Massivholzanleimern, Furnier- und Kunststoffkanten sowie Massivhölzern und Holzwerkstoffen
Ausführung
- Schneiden achsparallel
- Abrunden mittels kugelgelagertem Anlaufring
Vorteile
Hinweise
- Kopierfräsen mittels Schablone
- Spannmittel: Spannzangen-Futter
R
[mm] |
Ø D
[mm] |
Ø d
[mm] |
Ø d
[zoll] |
L3
[mm] |
L1
[mm] |
Z | L/R | Maschine/Type | Ident-No. | Vergl. | Anfr. | |
---|---|---|---|---|---|---|---|---|---|---|---|
Gesuchte Abmessungen werden nicht aufgeführt?
ab Lager lieferbar |
|||||||||||
2,0 | 16 | 8,0 | 25 | 35 | 2 | R | 180824 | ||||
2,0 | 18 | 6,0 | 25 | 35 | 2 | R | EBM | 816995 | |||
3,0 | 18 | 6,0 | 2 | R | 167598 | ||||||
3,0 | 18 | 6,35 | 1/4" | 2 | R | 167599 | |||||
3,0 | 18 | 8,0 | 2 | R | 167600 | ||||||
4,0 | 20 | 6,0 | 2 | R | 167601 | ||||||
4,0 | 20 | 6,35 | 1/4" | 2 | R | 167602 | |||||
4,0 | 20 | 8,0 | 2 | R | 167603 | ||||||
5,0 | 22 | 6,0 | 2 | R | 167604 | ||||||
5,0 | 22 | 6,35 | 1/4" | 2 | R | 167605 | |||||
5,0 | 22 | 8,0 | 2 | R | 167606 | ||||||
6,3 | 24 | 6,35 | 1/4" | 2 | R | 167608 | |||||
6,3 | 24.6 | 6,0 | 2 | R | 167607 | ||||||
6,3 | 24.6 | 8,0 | 2 | R | 167609 | ||||||
8,0 | 30 | 6,0 | 2 | R | 167610 | ||||||
8,0 | 30 | 6,35 | 1/4" | 2 | R | 167611 | |||||
8,0 | 30 | 8,0 | 2 | R | 167612 | ||||||
9,5 | 33 | 6,0 | 2 | R | 167613 | ||||||
9,5 | 33 | 6,35 | 1/4" | 2 | R | 167614 | |||||
9,5 | 33 | 8,0 | 2 | R | 167615 | ||||||
12,7 | 39.4 | 6,0 | 2 | R | 167616 | ||||||
12,7 | 39.4 | 6,35 | 1/4" | 2 | R | 167617 | |||||
12,7 | 39.4 | 8,0 | 2 | R | 167618 |
