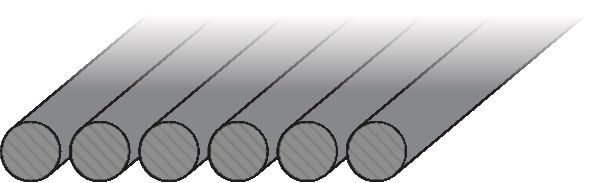

Messer HS - glatte Rundstäbe
Produkt

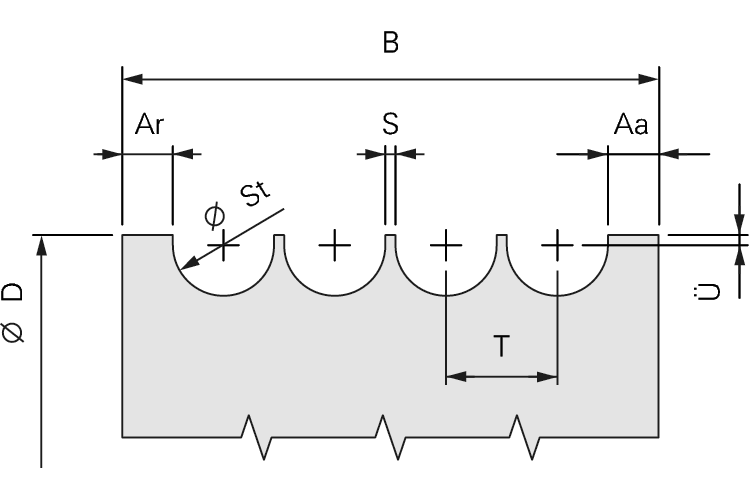

Zeichnung
- Hochleistungsschnellschnittstahl [HS]
Artikel
Beschreibung
Maschine / Anwendung
Ausführung
Vorteile
Hinweise
- Messer nachstellbar
- Profiltiefe und Flugkreisdurchmesser siehe Tabelle

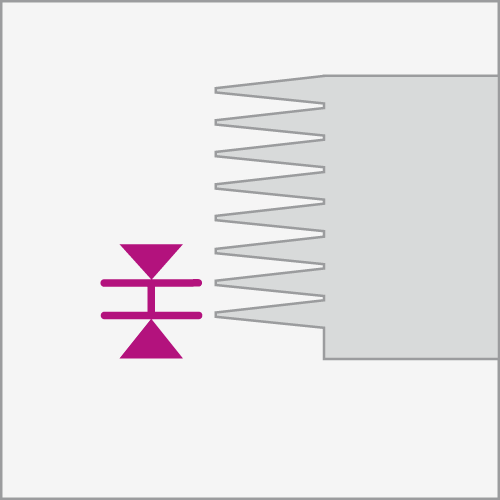

- für rückenverzahnte Blanketts mit S = 8, 10 mm
- Lieferumfang: Messerkopf mit Druckleiste; Blanketts siehe Kapitel Wendeplatten, Messer, Wechselplatten
|
Ø D
[mm] |
B
[mm] |
St.
[mm] |
Teilung
[mm] |
Stabanzahl
[St.] |
S
[mm] |
LEUCODUR |
VP
[St.] |
Ident-No. | Vergl. | Anfr. | |
|---|---|---|---|---|---|---|---|---|---|---|
|
Gesuchte Abmessungen werden nicht aufgeführt?
ab Lager lieferbar |
||||||||||
| 127 | 50 | 2 | 3 | 12 | 1 | HS | 8 | 50389200 | ||
| 127 | 50 | 3 | 4 | 9 | 1 | HS | 8 | 50389201 | ||
| 127 | 50 | 4 | 5 | 8 | 1 | HS | 8 | 50389202 | ||
| 127 | 50 | 5 | 6 | 7 | 1 | HS | 8 | 50389203 | ||
| 127 | 50 | 6 | 7 | 6 | 1 | HS | 8 | 50389204 | ||
| 127 | 50 | 7 | 8 | 5 | 1 | HS | 8 | 50389205 | ||
| 135 | 50 | 8 | 9 | 4 | 1 | HS | 8 | 50389206 | ||
| 135 | 50 | 9 | 10 | 4 | 1 | HS | 8 | 50389207 | ||
| 135 | 50 | 10 | 11 | 3 | 1 | HS | 8 | 50389208 | ||
| 135 | 50 | 11 | 12.5 | 3 | 1.5 | HS | 8 | 50389209 | ||
| 135 | 50 | 12 | 13.5 | 3 | 1.5 | HS | 8 | 50389210 | ||
| 135 | 50 | 13 | 14.5 | 3 | 1.5 | HS | 8 | 50389211 | ||
| 135 | 50 | 14 | 15.5 | 2 | 1.5 | HS | 8 | 50389212 | ||
| 135 | 50 | 15 | 16.5 | 2 | 1.5 | HS | 8 | 50389213 | ||
| 135 | 50 | 16 | 17.5 | 2 | 1.5 | HS | 8 | 50389214 | ||
| 127 | 75 | 3 | 4 | 16 | 1 | HS | 8 | 50389215 | ||
| 127 | 75 | 4 | 5 | 13 | 1 | HS | 8 | 50389216 | ||
| 127 | 75 | 5 | 6 | 11 | 1 | HS | 8 | 50389217 | ||
| 127 | 75 | 6 | 7 | 9 | 1 | HS | 8 | 50389218 | ||
| 127 | 75 | 7 | 8 | 8 | 1 | HS | 8 | 50389219 | ||
| 135 | 75 | 8 | 9 | 7 | 1 | HS | 8 | 50389220 | ||
| 135 | 75 | 9 | 10 | 6 | 1 | HS | 8 | 50389221 | ||
| 135 | 75 | 10 | 11 | 6 | 1 | HS | 8 | 50389222 | ||
| 135 | 75 | 11 | 12.5 | 5 | 1.5 | HS | 8 | 50389223 | ||
| 135 | 75 | 12 | 13.5 | 5 | 1.5 | HS | 8 | 50389224 | ||
| 135 | 75 | 13 | 14.5 | 4 | 1.5 | HS | 8 | 50389225 | ||
| 135 | 75 | 14 | 15.5 | 4 | 1.5 | HS | 8 | 50389226 | ||
| 135 | 75 | 15 | 16.5 | 4 | 1.5 | HS | 8 | 50389227 | ||
| 135 | 75 | 16 | 17.5 | 4 | 1.5 | HS | 8 | 50389228 | ||
| 127 | 100 | 4 | 5 | 18 | 1 | HS | 8 | 50389229 | ||
| 127 | 100 | 5 | 6 | 15 | 1 | HS | 8 | 50389230 | ||
| 127 | 100 | 6 | 7 | 13 | 1 | HS | 8 | 50389231 | ||
| 127 | 100 | 7 | 8 | 11 | 1 | HS | 8 | 50389232 | ||
| 135 | 100 | 8 | 9 | 10 | 1 | HS | 8 | 50389233 | ||
| 135 | 100 | 9 | 10 | 9 | 1 | HS | 8 | 50389234 | ||
| 135 | 100 | 10 | 11 | 8 | 1 | HS | 8 | 50389235 | ||
| 135 | 100 | 11 | 12.5 | 7 | 1.5 | HS | 8 | 50389236 | ||
| 135 | 100 | 12 | 13.5 | 6 | 1.5 | HS | 8 | 50389237 | ||
| 135 | 100 | 13 | 14.5 | 6 | 1.5 | HS | 8 | 50389238 | ||
| 135 | 100 | 14 | 15.5 | 6 | 1.5 | HS | 8 | 50389239 | ||
| 135 | 100 | 15 | 16.5 | 5 | 1.5 | HS | 8 | 50389240 | ||
| 135 | 100 | 16 | 17.5 | 5 | 1.5 | HS | 8 | 50389241 | ||
| 127 | 125 | 6 | 7 | 16 | 1 | HS | 8 | 50389242 | ||
| 127 | 125 | 7 | 8 | 14 | 1 | HS | 8 | 50389243 | ||
| 135 | 125 | 8 | 9 | 13 | 1 | HS | 8 | 50389244 | ||
| 135 | 125 | 9 | 10 | 11 | 1 | HS | 8 | 50389245 | ||
| 135 | 125 | 10 | 11 | 10 | 1 | HS | 8 | 50389246 | ||
| 135 | 125 | 11 | 12.5 | 9 | 1.5 | HS | 8 | 50389247 | ||
| 135 | 125 | 12 | 13.5 | 8 | 1.5 | HS | 8 | 50389248 | ||
| 135 | 125 | 13 | 14.5 | 8 | 1.5 | HS | 8 | 50389249 | ||
| 135 | 125 | 14 | 15.5 | 7 | 1.5 | HS | 8 | 50389250 | ||
| 135 | 125 | 15 | 16.5 | 7 | 1.5 | HS | 8 | 50389251 | ||
| 135 | 125 | 16 | 17.5 | 7 | 1.5 | HS | 8 | 50389252 | ||
| 135 | 150 | 9 | 10 | 14 | 1 | HS | 8 | 50389253 | ||
| 135 | 150 | 10 | 11 | 13 | 1 | HS | 8 | 50389254 | ||
| 135 | 150 | 11 | 12.5 | 11 | 1.5 | HS | 8 | 50389255 | ||
| 135 | 150 | 12 | 13.5 | 10 | 1.5 | HS | 8 | 50389256 | ||
| 135 | 150 | 13 | 14.5 | 9 | 1.5 | HS | 8 | 50389257 | ||
| 135 | 150 | 14 | 15.5 | 9 | 1.5 | HS | 8 | 50389258 | ||
| 135 | 150 | 15 | 16.5 | 8 | 1.5 | HS | 8 | 50389259 | ||
| 135 | 150 | 16 | 17.5 | 8 | 1.5 | HS | 8 | 50389260 | ||
